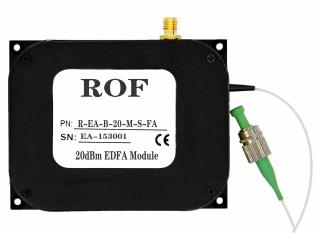

ROF-EDFA-P Talakawa mai fitar da wutar lantarki na fiber amplifier Optical Amplifier

ROF-EDFA-P Talakawa mai fitar da wutar lantarki na fiber amplifier Fitar da Fitar da Hoton

Takaitaccen Bayani:

Rofea Optoelectronics da kansa ɓullo da Rof-EDFA jerin kayayyakin da aka musamman tsara don dakin gwaje-gwaje da kuma factory gwajin yanayi na Tantancewar fiber ikon ƙarawa kayan aiki, ciki hade da high-yi famfo Laser, high-riba erbium-doped fiber, da kuma musamman iko da kuma kariya kewaye. don cimma ƙananan amo, babban fitarwa na kwanciyar hankali, AGC, ACC, APC za a iya zaɓar hanyoyin aiki guda uku. Ana amfani da shi sosai wajen gano fiber na gani da sadarwa ta fiber na gani. Amplifier fiber na benchtop yana da nunin LCD, iko da kullin daidaita yanayin don aiki mai sauƙi, kuma yana ba da ƙirar RS232 don sarrafa nesa. Samfuran samfurin suna da halaye na ƙananan ƙananan, ƙananan amfani da wutar lantarki, haɗin kai mai sauƙi, sarrafa shirye-shirye da sauransu.

Aika mana imel SAUKARWA

Cikakken Bayani

Rofea Optoelectronics yana ba da Kayan gani da kayan aikin photonics Electro-optic modulators

Tags samfurin

Siffar

Ƙarfin amo
Ƙananan amfani da wutar lantarki
Ikon sarrafawa
Akwai hanyoyi da yawa
Desktop ko module na zaɓi
Kashe kariyar famfo ta atomatik

Aikace-aikace

• Amplifier na iya haɓaka ƙarfin (matsakaici) na fitarwar laser zuwa manyan matakan (→ master oscillator power amplifier = MOPA).
• Yana iya samar da mafi girman iko kololuwa, musamman a cikin ƙwanƙwasa ƙwanƙwasa, idan an fitar da makamashin da aka adana cikin ɗan gajeren lokaci.
• Yana iya haɓaka sigina masu rauni kafin gano hoto, don haka rage amo, sai dai idan ƙarar ƙarar ƙarar ta girma.
• A cikin dogon hanyoyin haɗin fiber-optic don sadarwar fiber na gani, dole ne a ɗaga matakin ƙarfin gani a tsakanin dogayen sassan fiber kafin bayanin ya ɓace a cikin amo.

Siga

Siga		Naúrar	Mafi ƙarancin	Tna al'ada	Maximum
Tsawon zangon aiki		nm	1530		1565
Kewayon wutar siginar shigarwa		dBm	-10	0	5
Karamin-sigina riba		dB		30	35
Matsakaicin fitarwar ƙarfin gani na gani *		dBm		20
Ma'anar surutu **		dB		5.0	5.5
Shigar da keɓewar gani		dB	30
Fitarwa na gani keɓewa		dB	30
Riba mai dogaro da polarization		dB		0.3	0.5
Watsawa yanayin polarization		ps			0.3
Shigar da zubewar famfo		dBm			-30
Fitowar famfo		dBm			-40
Wutar lantarki mai aiki	module	V		5
Wutar lantarki mai aiki	tebur	V (AC)	80		240
Nau'in Fiber			SMF-28
Fitar dubawa			FC/APC
Girman kunshin	module	mm	90×70×14
Girman kunshin	tebur	mm	320×220×90

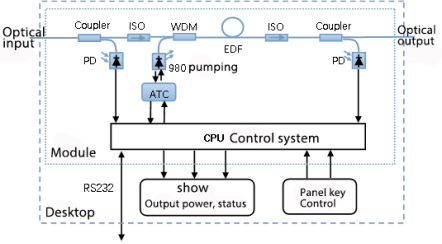

Tsarin tsari da tsari

Jerin samfuran

Samfura	Bayani	siga
ROF-EDFA-P	Fitar wutar lantarki ta yau da kullun	17/20/23dBm fitarwa
ROF-EDFA-HP	Babban fitarwar wutar lantarki	30dBm/33dBm/37dBm fitarwa
ROF-EDFA-A	Ƙarfin wutar lantarki na gaba-gaba	-35dBm/-40dBm/-45dBm shigar
ROF-YDFA	Ytterbium-doped fiber amplifier	1064nm ku, Mafi girman fitarwa na 33dBm

Bayanin oda

ROF

EDFA

Erbium Doped Fiber Amplifier

P--Fitar wutar lantarki ta yau da kullun

Ƙarfin fitarwa:

17.....17dBm

20….20dBm

Girman kunshin:

D---tebur

M---module

Mai haɗa fiber na gani:

FA---FC/APC

Null - ba riba lebur

Gf-gain lebur
